Stepper motors/½ºÅ×ÆÛ¸ðÅÍ
  ÁÖ¿äƯ¡

¡á Stepper motors(½ºÅ×ÆÛ¸ðÅÍ)´Â 3°¡ÁöÀÇ Á¦Ç°½Ã¸®Áî·Î ºÐ·ù
  ¢º X-NMS & X-NMS-E Series: Stepper motors with built-in controllers and motor encoders
  ¢º NM Series: Stepper motors
¡á Á¦Ç°º° ÁÖ¿ä Ư¡Àº ÇÏ´Ü ¼³¸í ÂüÁ¶

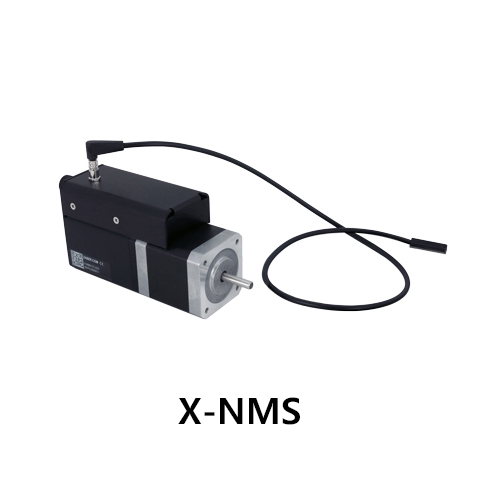

  ¢º X-NMS & X-NMS-E Series: Stepper motors with built-in controllers and motor encoders
  ¡á NEMA 17 stepper motor with built-in controller
  ¡á Up to 25,600 microsteps per revolution
  ¡á Up to 2,650 rpm speed and 30 N-cm torque
  ¡á Home sensor and small magnet included, optional magnetic away sensor
  ¡á Daisy-chains data and power with X-series products

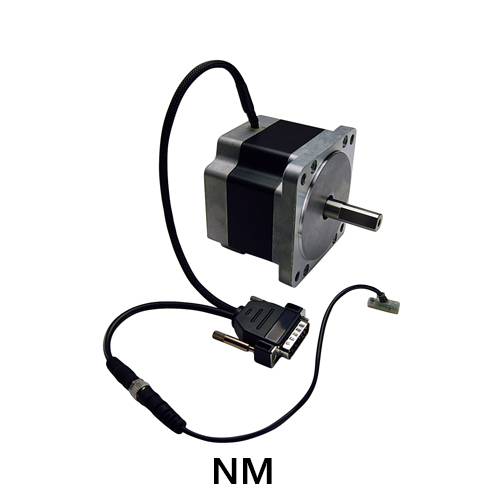

¢º NM Series: Stepper motors
  ¡á Standard NEMA frame stepper motors
  ¡á Available in size 8 to 34 for a variety of torques and speeds with single or double shaft
  ¡á Home sensor (HSM8) and small magnet included
  ¡á Designed for use with an X-MCB1 Series stepper motor controller or any 2-phase stepper motor controller






Cat. No Model Description Unit Price(VATº°µµ) ³³±â ºñ°í
M01-680-750 X-NMS17C-E01-KX13C  Stepper motor with RS-232 controller NEMA size 17 with motor encoder 1/EA

¹®ÀÇ
7 Day

M01-680-755 X-NMS17C-WE01-KX13C  Stepper motor with RS-232 controller NEMA size 17 with motor encoder and away sensor 1/EA

¹®ÀÇ
7 Day

M01-680-760 X-NMS17C-KX13C  Stepper motor with RS-232 controller NEMA size 17 1/EA

¹®ÀÇ
7 Day

M01-680-765 X-NMS17C-W-KX14C  Stepper motor with RS-232 controller NEMA size 17 with away sensor 1/EA

¹®ÀÇ
7 Day

M01-680-770 X-NMS17C-W-PTB2  Stepper motor with RS-232 controller NEMA size 17 with away sensor 1/EA

¹®ÀÇ
7 Day

M01-680-775 NM08AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 33 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-780 NM08AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 33 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-785 NM08BD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 43 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-790 NM08BS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 08 x 43 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-795 NM11AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 32 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-800 NM11AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 32 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-805 NM11CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 40 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-810 NM11CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 11 x 40 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-815 NM17AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 33 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-820 NM17AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 33 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-825 NM17CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 47 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-830 NM17CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 17 x 47 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-835 NM23AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 39 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-840 NM23AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 39 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-845 NM23CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 47 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-850 NM23CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 23 x 47 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-855 NM34AD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 66 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-860 NM34AS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 66 mm single shaft 1/EA

¹®ÀÇ
7 Day

M01-680-865 NM34CD-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 126 mm double shaft 1/EA

¹®ÀÇ
7 Day

M01-680-870 NM34CS-T4-MC04-HSM8  Stepper motor with home sensor NEMA size 34 x 126 mm single shaft 1/EA

¹®ÀÇ
7 Day
