Rotary Stage/¿øÇü À̼ÛÀåÄ¡
  ÁÖ¿äƯ¡

¡á Rotary Stage(¿øÇü À̼ÛÀåÄ¡)´Â 2°¡Áö Á¦Ç°±ºÀ¸·Î ºÐ·ù
  1. Motorized Rotary Stage with built-in controllers and direct encoders
  2. Motorized Rotary Stage with built-in controllers and motor encoders
¡á Á¦Ç°º° ÁÖ¿ä Ư¡Àº ÇÏ´Ü ¼³¸í ÂüÁ¶







  1. Motorized Rotary Stage with built-in controllers and direct encoders
¡á Direct reading encoder for position correction; stage accuracy to 0.01 degrees
¡á 50.8 mm (2 inch) aperture with kinematic mounting options for repeatability of assembly
¡á 50 kg centered load capacity
¡á Speed up to 24 deg/s and torque up to 10 N-m
¡á Built-in controller; daisy-chains with other Zaber products
¡á Multiple X-Series products in a daisy-chain can share a single power supply

2. Motorized Rotary Stage with built-in controllers and motor encoders
¡á 50.8 mm (2 inch) aperture with kinematic mounting options for repeatability of assembly
¡á 50 kg centered load capacity
¡á Speed up to 24 deg/s and torque up to 10 N-m
¡á Built-in controller; daisy-chains with other Zaber products
¡á Encoder position feedback with slip/stall detection and automatic recovery
¡á Multiple X-Series products in a daisy-chain can share a single power supply






  Motorized Rotary Stage with built-in controllers and direct encoders
Cat. No Model Description Unit Price(VATº°µµ) ³³±â ºñ°í

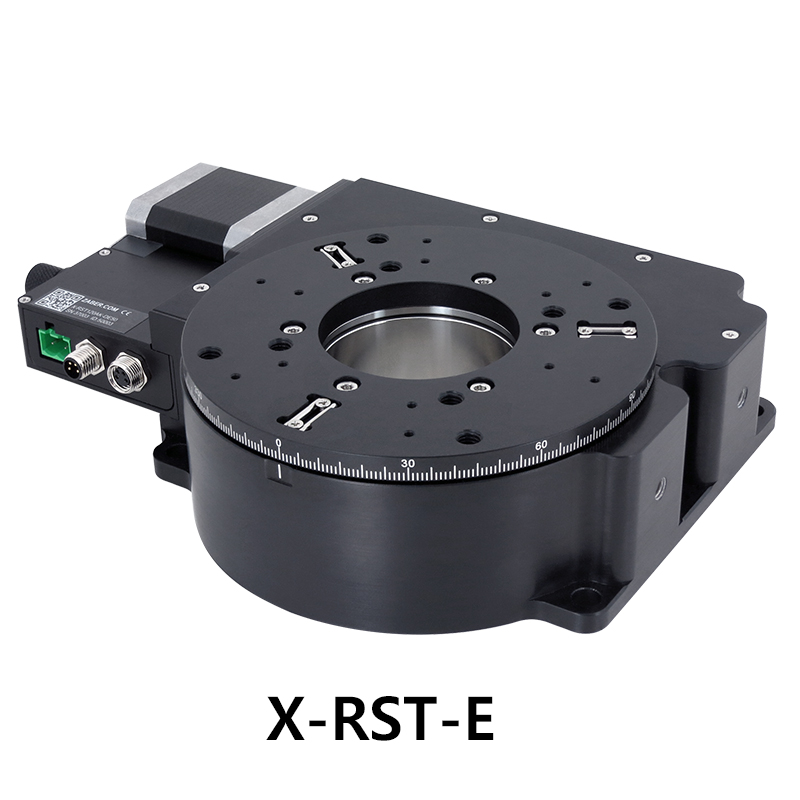

M01-680-415 X-RST120AK-DE50-KX14A  rotary stage 120 mm diameter controller and direct reading encoder 1/EA

¹®ÀÇ
7 Day

  Motorized Rotary Stage with built-in controllers and motor encoders
Cat. No Model Description Unit Price(VATº°µµ) ³³±â ºñ°í
M01-680-425 X-RST120AK-E03-KX14A  rotary stage 120 mm diameter controller and motor encoder 1/EA

¹®ÀÇ
7 Day

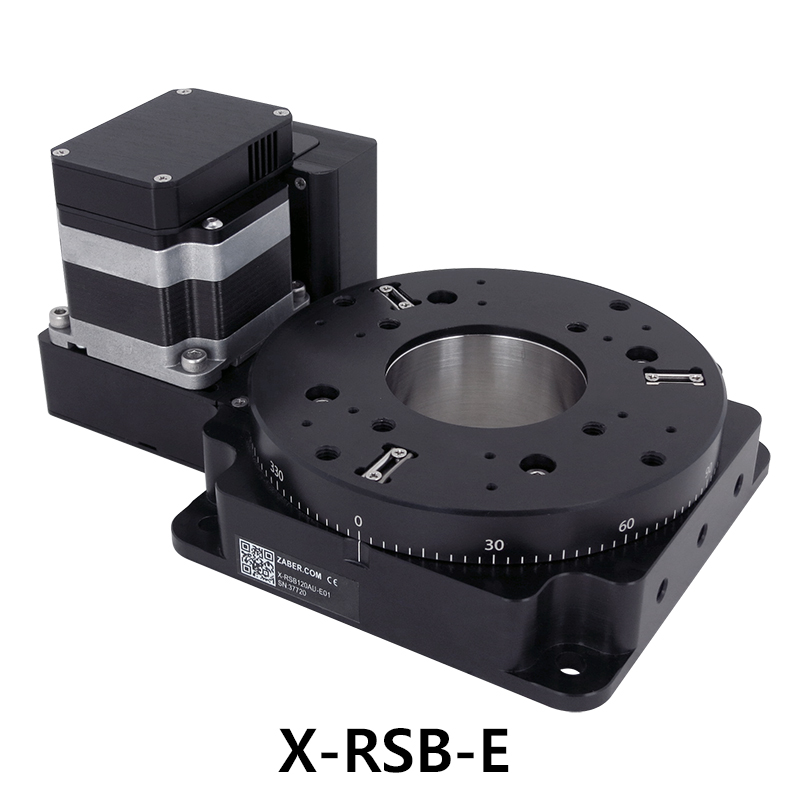

M01-680-430 X-RSB120AD-E01-KX14A  rotation stage motor down 120 mm diameter controller and motor encoder 1/EA

¹®ÀÇ
7 Day

M01-680-435 X-RSB120AU-E01-KX14A  rotation stage motor up 120 mm diameter controller and motor encoder 1/EA

¹®ÀÇ
7 Day

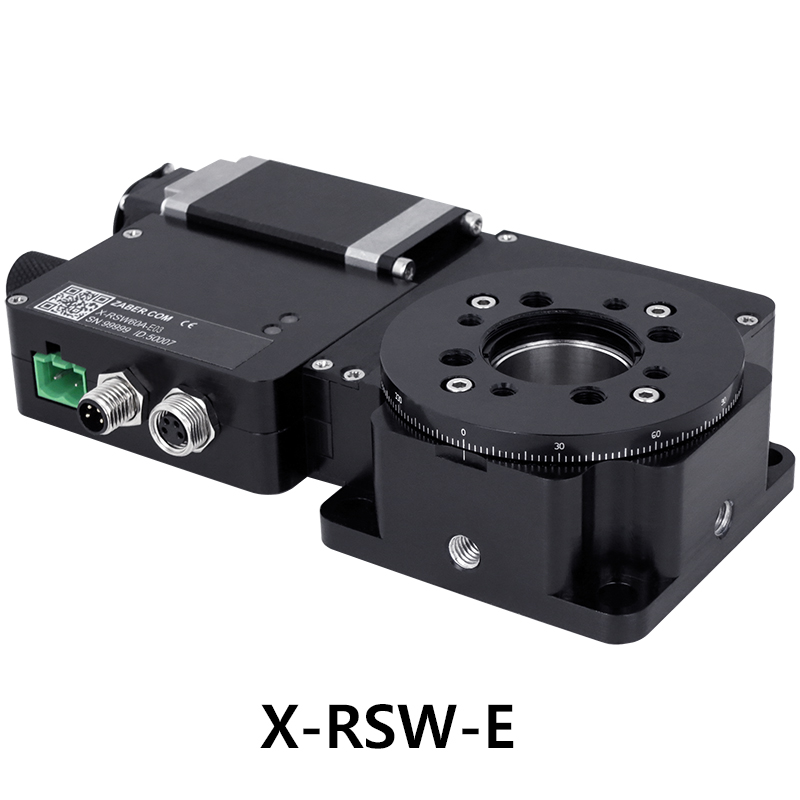

M01-680-440 X-RSW60A-E03-KX14A  rotary stage 60 mm stage top controller and motor encoder 1/EA

¹®ÀÇ
7 Day

M01-680-445 X-RSW60C-E03-KX14A  rotary stage 60 mm stage top controller and motor encoder 1/EA

¹®ÀÇ
7 Day
